100 International Tractor 9" Single Stage Clutch Kit Assembly

This Is a New 9” Single Stage Clutch Kit Assembly

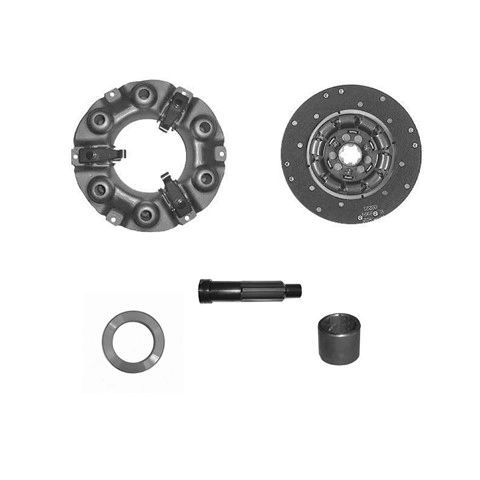

The Kit Comes With

9” Pressure Plate With 3 Levers And 6 Springs

9” Woven Clutch Disc With 1-1/4” 6 Spline Hub

Release Bearing OD 3.328” ID 2.062” Thickness .750”

Pilot Bushing OD 1.125” ID .883” Thickness .995”

Alignment Tool 6 Spline With 1-1/4” Spline Size Pilot Diameter 0.883”
