1010 John Deere Tractor 10" Single Stage Clutch Kit Assembly

$250.00

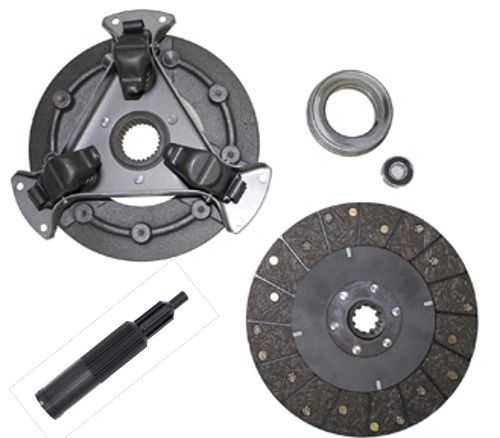

This Is a New 10” Single Stage Clutch Kit Assembly

               The Kit Comes With

10” Single Stage Pressure Plate With 3 Levers 1-3/4” 27 Spline Hub

10” Woven Clutch Disc With 1-1/4” 10 Spline Spring Hub

Release Bearing OD 3.750” ID 2.250” Thickness .750”

Pilot Bearing OD 1.375" ID .590" Thickness .430"

Alignment Tool Large Spline 1-3/4’ X 24 Small Spline 1-1/4” 10 Spline

 Pilot Spline Diameter 0.590”
