1030 John Deere Tractor 11" Dual Stage Clutch Kit

This Is a New 11’’ Dual Stage Clutch Kit Assembly

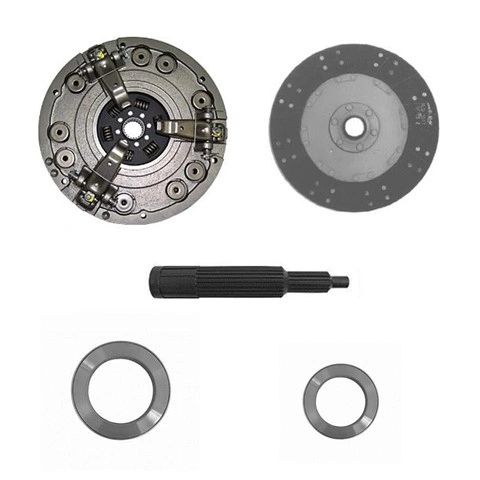

                   The Kit Comes With

11” Dual Stage Pressure Plate With 3 Levers 1-1/2” 23 Spline Hub

11” 5 Woven Clutch Disc With 1” 15 Spline Hub

Release Bearing OD 3.750” ID 2.250” Thickness .750”

Pilot Bearing OD 1.375” ID .590” Thickness .430”

Alignment Tool Large Spline 1-1/2” 23 Spline

Small Spline 1” 15 Spline Pilot Diameter 0.591”

Flywheel Step 2.200”-2.210”
