1130 Case IH Tractor 8" Single Stage Clutch Kit Assembly

$160.00

This Is a New 8” Single Stage Clutch Kit Assembly

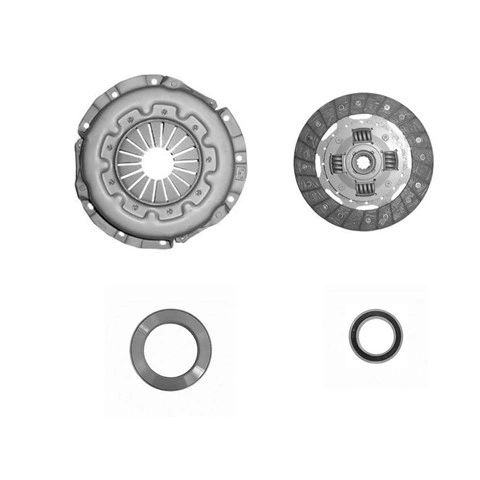

              The Clutch Kit Comes With

8” Diaphragm Pressure Plate

8” Woven Clutch Disc With 13/16” 12 Spline Spring Hub

Release Bearing OD 2.500” ID 1.574” Thickness .610”

Pilot Bearing OD 1.250” ID 0.590” Thickness 0.350”
