135UK Massey Ferguson Tractor 12" Split Torque Clutch Kit Assembly HD
$675.00
This Is A 12” Split Torque Clutch Kit Assembly

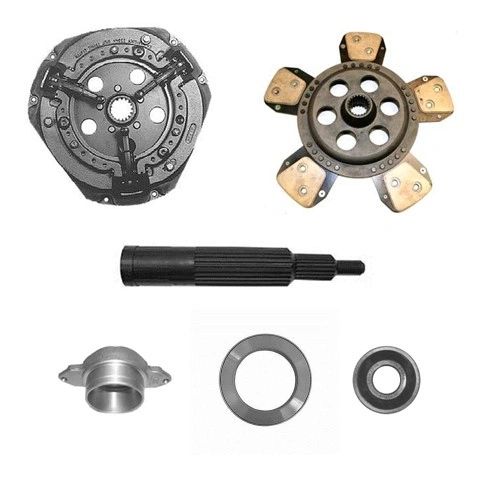

The Kit Comes With
12” Split Torque Pressure Plate With 3 Levers 12 Springs
12” 5 Pad Clutch Disc With 1-1/8” 21 Spline Hub
Release Bearing OD 4.154” ID 2.500” Thickness .865”
Pilot Bearing OD 1.5748” ID .6693” Thickness .4724”
Release Bearing Carrier OD 2.500” ID 2.220”
Alignment Tool Large Spline 1-5/8” 25 Spline
Small Spline 1-1/8” 21 Spline
Pilot Diameter 0.670”
Flywheel Step 1.560”-1.565”
