1365 Oliver Tractor 11" Dual Stage Clutch Kit Assembly

$550.00

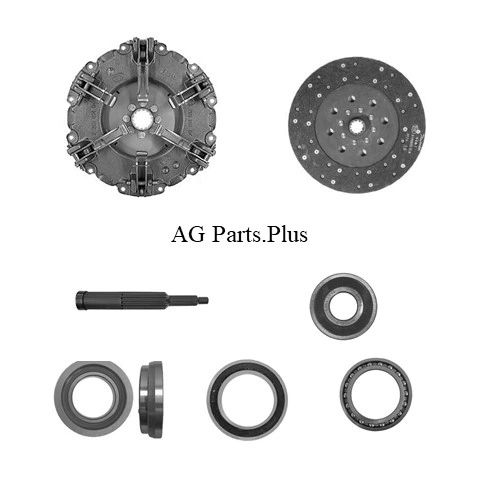

This Is a New 11” Dual Stage Clutch Kit Assembly

             The Kit Comes With

11” Dual Stage Pressure Plate With 6 Levers With 11’’ X 1-9/16’’ 14 Spline Hub

With 6 Pads Engine Disc

11’’ Woven Clutch Disc With 1’’ 10 Spline Hub

Release Bearing with Collar OD 3.550” ID 1.968’’ Thickness .845’’

Release Bearing with Out Collar OD 3.147” ID 1.968’’ Thickness .620’’

PTO Release Bearing OD 3.936” ID 2.557’’ Thickness .430’’

Pilot Bearing OD 1.850” ID .669’’ Thickness 0.550’’

Alignment Tool Large Spline 1-9/16’’ 14 Spline Small Spline 1’’ 10 Spline Pilot Diameter 0.669’’

Flywheel Step .079”
