1510 Ford Tractor 8-1/2" Dual Stage Clutch Kit Assembly

$300.00

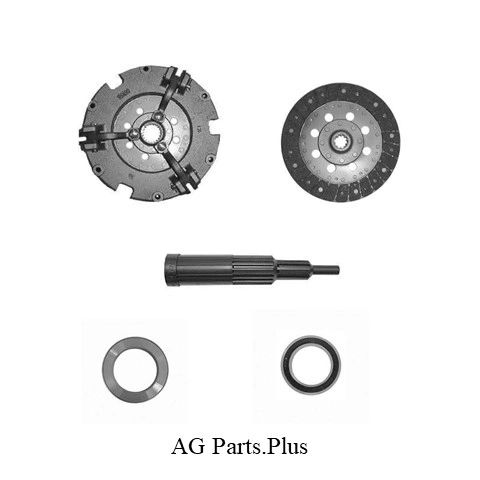

This Is a New 8-1/2’’ Dual Stage Clutch Kit Assembly

                   The Kit Comes With

8-1/2’’ Dual Stage Pressure Plate With 1-3/8” 19 Spline Hub

8-1/2” Woven Clutch Disc with 15/16’’ 10 Spline Hub

Release Bearing OD 3.450” ID 2.164” Thickness .765”

Pilot Bushing OD 1.102” ID 0.475” Width 0.313”

Alignment Tool Large Spline 1-3/8” 19 Spline

Small Spline 15/16” 10 Spline Pilot Diameter 0.470”

Flywheel Step .079”
