1520 Ford Tractor 8-1/2" Dual Stage Clutch Kit Assembly

This Is a New 8-1/2’’ Dual Stage Clutch Kit Assembly

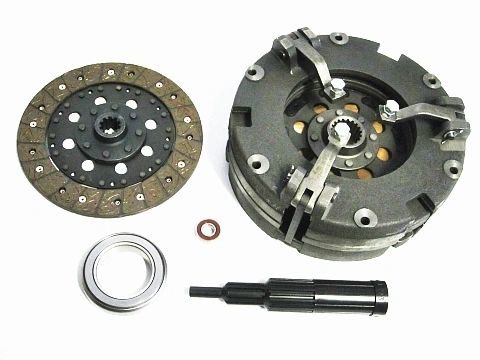

                   The Kit Comes With

8-1/2” Dual Stage Pressure Plate With 3 Levers 1-3/8” 19 Spline Hub

8-1/2” Woven Clutch Disc With 15/16” 10 Spline Hub

Release Bearing OD 3.450” ID 2.164” Thickness .765”

Pilot Bearing OD 1.102” ID 0.475” Thickness 0.313”

Alignment Tool Large Spline 1-3/8” 19 Spline

Small Spline 15/16” 10 Spline Pilot Diameter 0.470”

Flywheel Step .125”
