1700 Ford Tractor 9" Dual Stage Clutch Kit

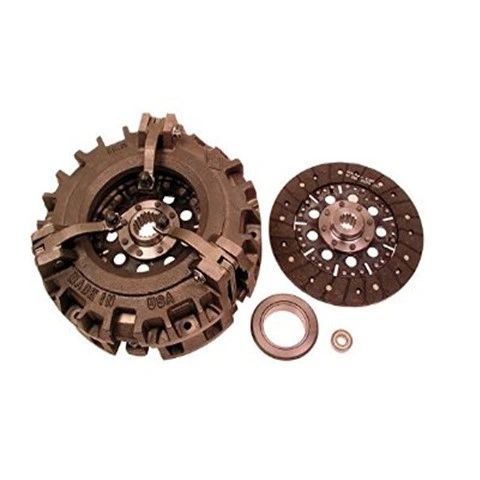

This Is A 9” Dual Stage Clutch Kit Assembly

              The Kit Comes With

9” Dual Stage Pressure Plate with 3 Levers With 1-3/8 19 Spline Hub

9” Woven Clutch Disc with 15/16” 13 Spline Hub

Release Bearing OD 3.450” ID 2.164” Thickness .765”

Pilot Bearing OD 1.102” ID 0.475” Thickness 0.313”
