178 Massey Ferguson Tractor 12" Dual Stage Clutch Kit Assembly

This Is A New 12” Dual Stage Clutch Kit Assembly

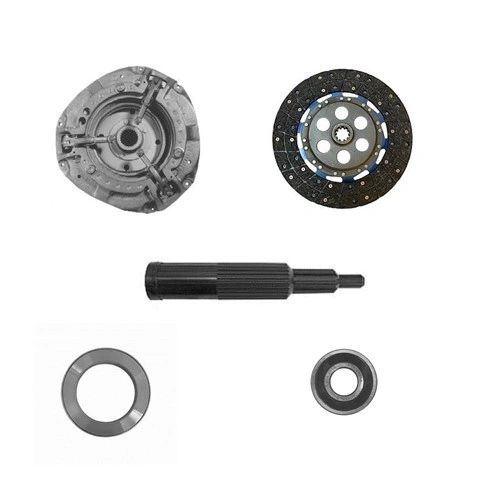

                          The Kit Come With

12” Dual Stage Pressure Plate With 3 Levers 12 Springs With 1-3/4” 10 Spline Hub

12 Woven Clutch Disc With 1-1/8” 10 Spline Hub

Release Bearing OD 4.154” ID 2.500” Thickness .865”

Pilot Bearing OD 1.5748” ID .6693” Thickness 0.4724”

Alignment Tool Large Spline 1-3/4” 10 Spline.

Small Spline 1-1/8” 10 Spline Pilot Diameter 0.678”

Flywheel Step 1-560”-1.565”
