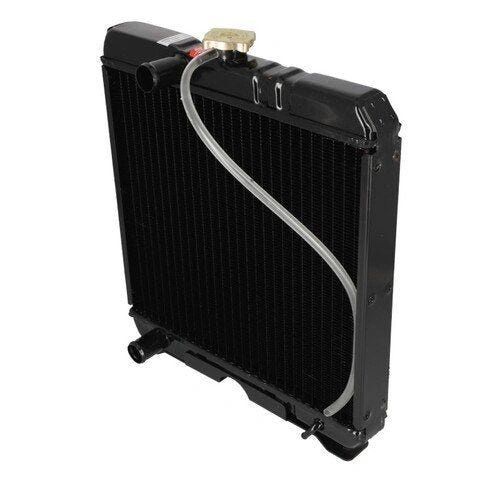

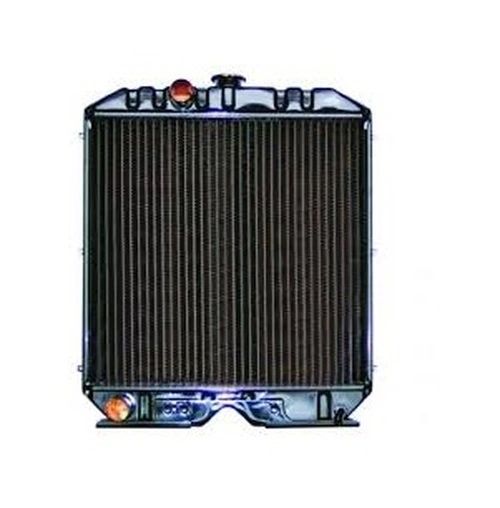

1920 Ford Tractor Radiator Assembly
$410.00
This Is a New Radiator Assembly
|
Tech. Data: |
|
Inlet and Outlet OD 1.37", HOA 21 1/2", WOA 17 1/4", Side frame width 2 3/8", Core height 15 1/2", 2 row, 7 FPI. Copper Core. |
SPECS
Please inspect all radiators upon receipt, any damage must be reported within 7 days of receipt in order to receive credit
Core Height15 1/2" Core Thickness1 3/4"
Core Width16 1/2" Fins per Inch7
Height21 1/2" Lower Hose Connection OD1 3/8"
Mounting Width14 5/8" Neck Height3/4"
Pressure Cap Included Rows2
Thickness2 3/8" Top Hose Connection OD1 3/8"
Width17 1/4"
