20 IND Massey Ferguson Tractor 12" Dual Stage Clutch Kit Assembly
$395.00

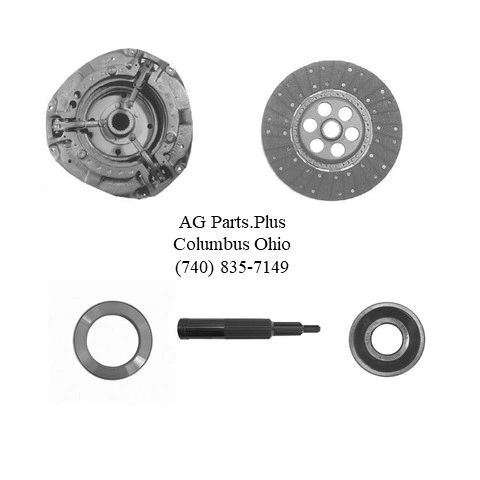

This Is a New 12” Dual Stage Clutch Kit Assembly
The Kit Comes With
12” Dual Stage Pressure Plate With 1-5/8” 25 Spline Hub
12” Woven Clutch Disc With 1-1/8” 10 Spline Hub
Release Bearing OD 4.154” ID 2.500” Thickness .865”
Pilot Bearing OD 1.5748” ID .6693” Thickness .4724”
Alignment Tool Large Spline 1-5/8” 25 Spline
Small Spline 1-1/8” 10 Spline Pilot Diameter 0.678”
Flywheel Step 1.560”- 1-565”
