2010 John Deere Tractor 10 " Single Stage Clutch Kit
$250.00

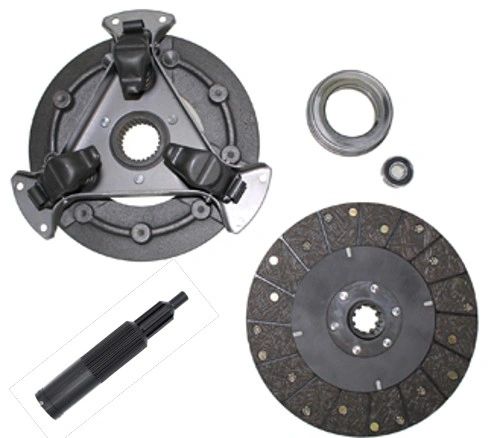

This Is a New 10” Single Stage Clutch Kit Assembly
The Kit Comes With
10” Single Stage Pressure Plate With 3 Levers 1-3/4” 27 Spline Hub
10” Woven Clutch Disc With 1-1/4” 10 Spline Spring Hub
Release Bearing OD 3.750” ID 2.250” Thickness .750”
Pilot Bearing OD 1.375" ID .590" Thickness .430"
Alignment Tool Large Spline 1-3/4’ X 24 Small Spline 1-1/4” 10 Spline
Pilot Spline Diameter 0.590”
