202 Massey Ferguson Tractor 11'' 12 Spring Dual Stage Clutch Kit Assembly

This Is a New 11” Dual Stage Clutch Kit Assembly

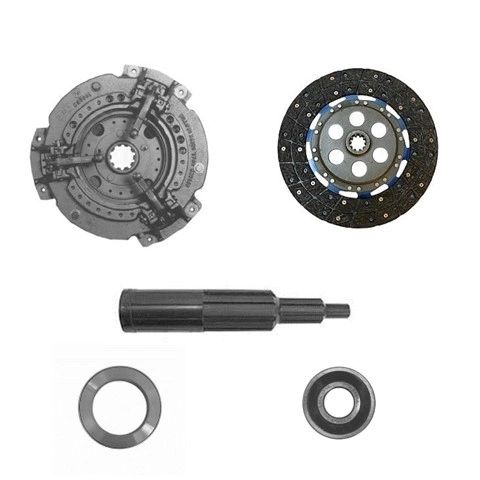

                    The Kit Comes With

11” Dual Stage Pressure Plate With 3 Levers With 1-3/4” 10 Spline Hub

11” Woven Clutch Disc with 1-1/8’’ 10 Spline Hub

Release Bearing OD 4.154” ID 2.500’’ Thickness .865’’

Pilot Bearing OD 1.5748” ID .6693’’ Thickness .4724”

Alignment Tool Large Spline 1-3/4” 10 Spline

Small Spline 1-1/8” 10 Spline

Pilot Diameter 0.678”

Flywheel Step 1.720”
