23-66 Ford Tractor 8-1/2'' Single Stage Clutch Kit Assembly
$160.00
This Is a New 8-1/2” Single Stage Clutch Kit Assembly Flywheel Step Flat

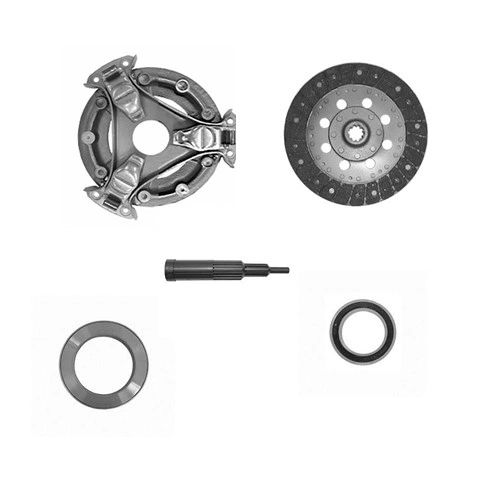

The Kit Comes With
8-1/2’’ Single Stage Pressure Plate with 3 Lever 3 Spring
8-1/2’’ Woven Clutch Disc With 15/16’’ 10 Spline Hub
Release Bearing OD 2.900” ID 1.771” Thickness 0.313”
Pilot Bearing OD 1.102” ID 0.475” Thickness 0.313”
Alignment Tool Large Spline 1-3/8” 19 Spline Small Spline 15/16” 10 Spline
Pilot Diameter 0.470”
