248 International Tractor 11'' Single Stage Clutch Kit Assembly

$315.00

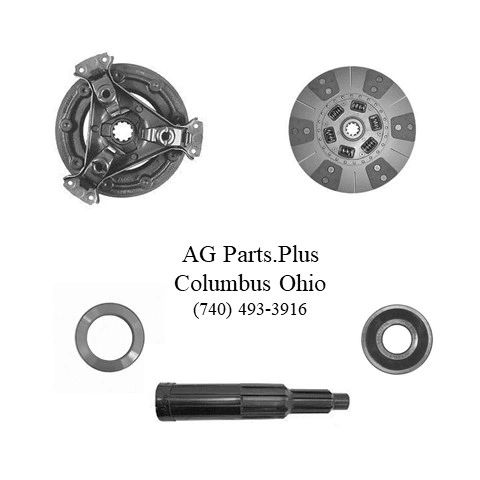

This Is a New 11” Single Stage Clutch Kit Assembly

               The Kit Comes With

11” Pressure Plate with 3 Levers and 6 Springs with 1-5/8” 10 Spline Hub

11” Clutch Disc With 1-1/8” 10 Spline Spring Hub with 6 Pads

Release Bearing OD 3.850” ID 2.375” Thickness .810”

Pilot Bearing OD 1.850” ID 0.787” Thickness 0.551”

Alignment Tool Large Spline 1-5/8” 10 Spline

Small Spline 1-1/8” 10 Spline Pilot Diameter 0.787”

Flywheel Step 1.443”
