290 Massey Ferguson Tractor 12'' Dual Stage Clutch Kit Assembly
$395.00
This Is a New 12” Dual Stage Clutch Kit Assembly the Clutch Kit Assembly

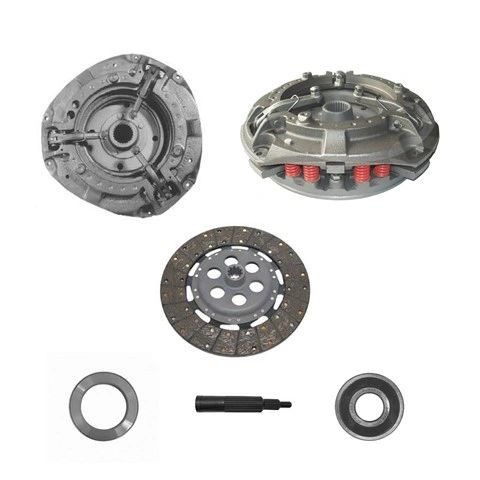

The Kit Come With
12” Pressure Plate With 3 Levers 12 Springs 1-5/8” 25 Spline Hub
12” Woven Clutch Disc With 1-1/8” 10 Spline Hub
Release Bearing OD 4.154” ID 2.500” Thickness .865”
Pilot Bearing OD 1.5748” ID .6693” Thickness .4724”
Alignment Tool Large Spline 1-5/8” 25 Spline Small Spline 1-1/8” 10 Spline Pilot
Diameter 0.678”
Flywheel Step 1.560"-1.565"
