3016 Mahindra Tractor 8-1/2" Single Stage Clutch Kit Assembly
$160.00

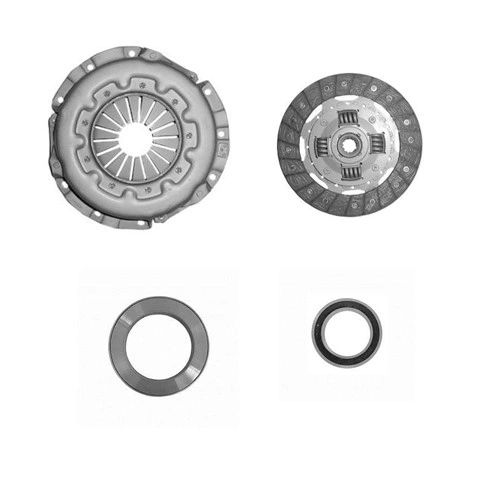

This Is a New 8-1/2” Single Stage Clutch Kit Assembly
The Kit Comes With
8-1/2” Diaphragm Pressure Plate
8” Woven Clutch Disc With 13/16” 12 Spline Spring Hub
Release Bearing OD 2.500” ID 1.574” Thickness .610”
Pilot Bearing OD 1.250" ID 0.590" Thickness 0.350"
The 8-1/2" Woven Clutch Disc Is No Longer Available
You Have to Use 8" Replacement Clutch Disc
Flywheel Step Is Flat
