3029 John Deere Tractor Engine 11 Inch Dual Stage Clutch Kit Assembly
$700.00

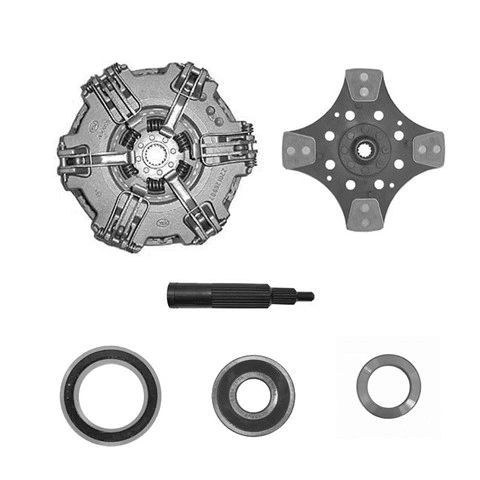

This Is a New 11 Inch Dual Stage Clutch Kit Assembly For D Model Tractor The Kit Comes With 11 Inch Dual Stage Pressure Plate With 1-3/8 Inch 19 Spline Hub 11 Inch Four Pad Clutch Disc with 1 Inch 13 Spline Hub Release Bearing OD 2.950 Inch ID 1.769 Inch Thickness .629 Inch Release Bearing OD 3.936 Inch ID 2.557 Inch Thickness .704 Inch Pilot Bushing OD 1.5748 Inch ID .6693 Inch Width .4724 Inch Alignment Tool Large Spline 1-3/8 Inch 19 Spline Small Spline 1 Inch 13 Spline Pilot Diameter 0.669 Inch Flywheel Step Flat
