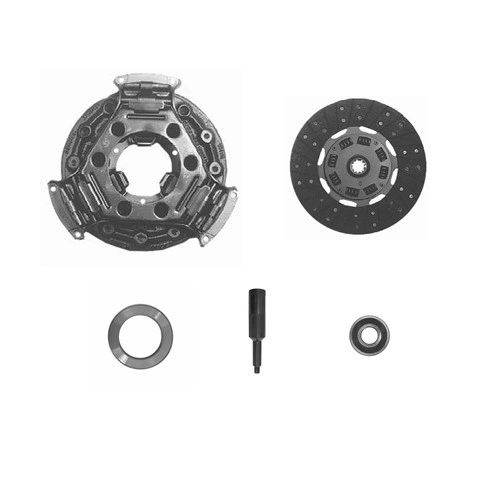

3400 Ford Tractor 11'' Single Stage Clutch Kit Assembly

This Is a New  Ford Tractor 11’’ Single Stage Clutch Kit with PTO Or No PTO

11’’ Single Stage Pressure Plate with 3 Levers 6 Springs

11’’ Woven Spring Clutch Disc with 1’’ 10 Spline Hub

Release Bearing ID 2.062’’ OD 3.500’’ Thickness .750’’

Pilot Bearing ID .6693’’ OD 1.5748’’ Thickness .4724’’

Alignment Tool Large Spline 1-7/8” 29 Spline

Small Spline 1” 10 Spline

Pilot Diameter 0.670”
