3400 Ford Tractor 12'' Single Stage Heavy Duty Clutch Kit Assembly 1965-1969
$305.00

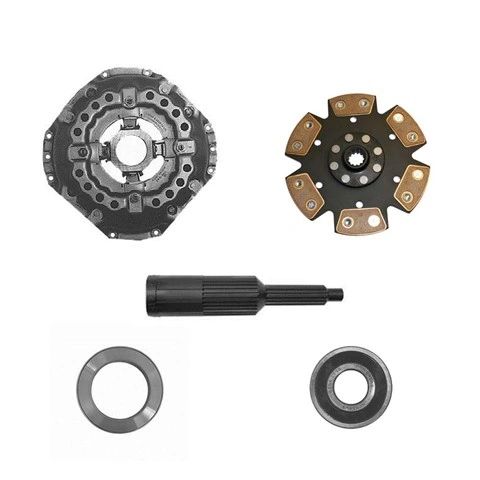

This Is a 12" Single Stage Clutch Kit
The Kit Come With
12” Pressure Plate with 4 Levers And 12 Springs
12” Clutch Disc with 6 Pads With 1" 15 Spline Hub
Release Bearing OD 4.154” ID 2.500” Thickness .865”
Pilot Bearing OD 1.5748” ID .6693” Thickness .4724”
Alignment Tool Large Spline 1-7/8” 29 Spline
Small Spline 1” 15 Spline Pilot Diameter 0.670”
Flywheel Step Flat
