350 Massey Ferguson Tractor 12" Split Torque Clutch Kit Assembly

This Is a New 12’’ Split Torque Clutch Kit Assembly

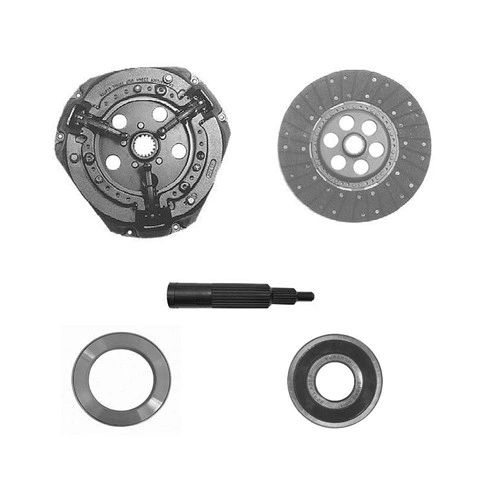

                 The Clutch Kit Comes With

12” Split Torque Pressure Plate With 1-5/8’’ 25 Spline Hub

12” Woven Clutch Disc with 1-1/8’’ 21 Spline Hub

Release Bearing OD 4.154" ID 2.500” Thickness .865”

Pilot Bearing OD 1.5748” ID .6693” Thickness .4724”

Alignment Tool Large Spline 1-5/8” 25 Spline

Small Spline 1-1/8” 21 Spline Pilot Diameter 0.670”

Flywheel Step 1-560”-1.565”
