3500 Ford Tractor 11" Dual Stage Clutch Kit

This Is a New 11” Dual Stage Clutch Kit Assembly

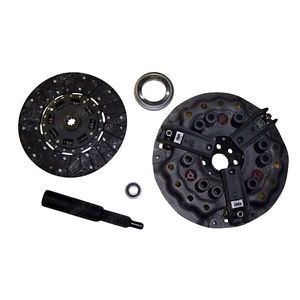

         The Kit Comes With

11’’ Dual Stage Pressure Plate with 3 Levers 1-7/8’’ 29 Spline Hub

11’’ Woven Spring Disc 1’’ 10 Spline Hub

Release Bearing ID 2.500’’ OD 4.154’’ Thickness .865’’

 Pilot Bearing ID .6693’’ OD 1.5748’’ Thickness .4724’’

Alignment Tool Large Spline 1-7/8’’ 29 Spline

 Small Spline 1’’ 10 Spline Pilot Diameter 0.670’’

Flywheel Step 1.750”
