3500 Ford Tractor 12'' Single Stage Clutch Kit Assembly 1965-1969
$325.00

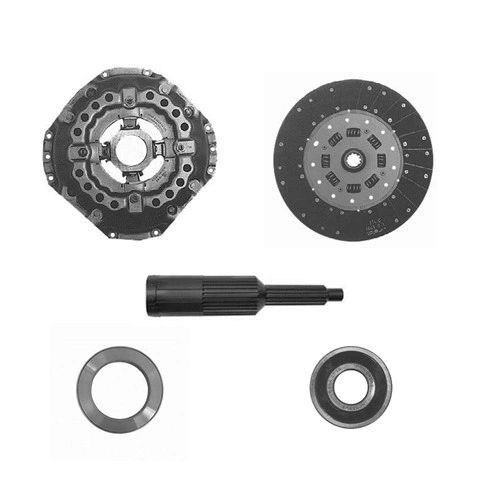

This Is a 12" Single Stage Clutch Kit
The Kit Come With
12” Pressure Plate with 4 Levers And 12 Springs
12” Woven Clutch Disc with 1" 15 Spline Hub
Release Bearing OD 4.154” ID 2.500” Thickness .865”
Pilot Bearing OD 1.5748” ID .6693” Thickness .4724”
Alignment Tool Large Spline 1-7/8” 29 Spline
Small Spline 1” 15 Spline Pilot Diameter 0.670”
Flywheel Step Flat
