3610 Ford Tractor 11" Dual Stage Clutch Kit Assembly With 15 Spline Drive Disc
$425.00
This Is a New 11” Dual Stage Clutch Kit Assembly

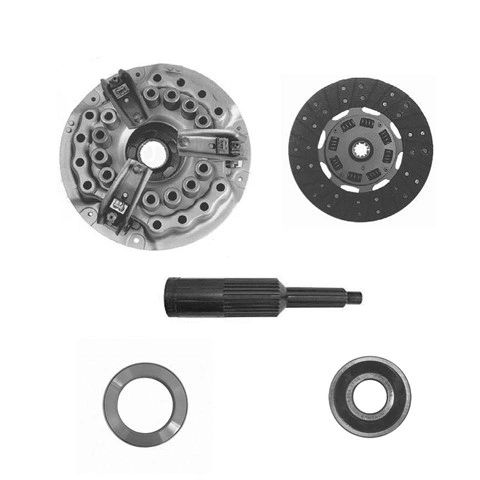

The Kit Comes With
11’’ Dual Stage Pressure Plate with 3 Levers 1-7/8’’ 29 Spline Hub
11’’ Woven Spring Disc 1’’ 15 Spline Hub
Release Bearing ID 2.500’’ OD 4.154’’ Thickness .865’’
Pilot Bearing ID .6693’’ OD 1.5748’’ Thickness .4724’’
Alignment Tool Large Spline 1-7/8’’ 29 Spline.
Small Spline 1’’ 10 Spline Pilot Diameter 0.670’’
