380B Case IH Tractor 11'' Single Stage Clutch Kit Assembly
$315.00
This Is a New 11” Single Stage Clutch Kit Assembly

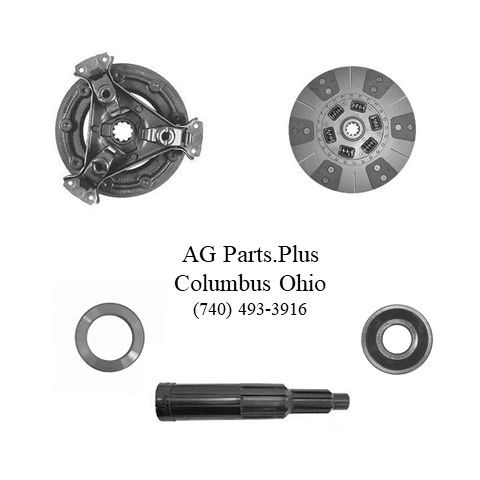

The Kit Comes With
11” Pressure Plate with 3 Levers and 6 Springs with 1-5/8” 10 Spline Hub
11” Clutch Disc With 1-1/8” 10 Spline Spring Hub with 6 Pads
Release Bearing OD 3.850” ID 2.375” Thickness .810”
Pilot Bearing OD 1.850” ID 0.787” Thickness 0.551”
Alignment Tool Large Spline 1-5/8” 10 Spline
Small Spline 1-1/8” 10 Spline Pilot Diameter 0.787”
Flywheel Step 1.443”
