4000 John Deere Tractor 12" Dual Stage Clutch Kit Assembly
$700.00

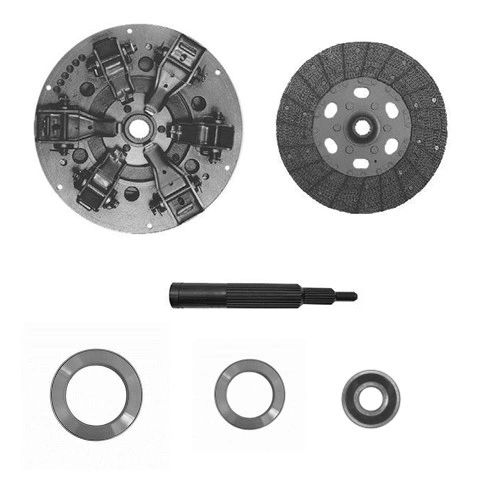

This Is a New 12’’ Dual Stage Clutch Kit Assembly
The Kit Comes With
12’’ Dual Stage Pressure Plate With 6 Levers 15 Spring 1-7/8” 29 Spline Hub
12” Woven Clutch Disc with 1-1/4’’ 19 Spline Hub
Release Bearing OD 3.500” ID 2.062” Thickness .750”
PTO Release Bearing OD 4.328” ID 2.758” Thickness .784”
Pilot Bearing OD 1.5748” ID .6693” Width .4724”
Alignment Tool Large Spline 1-7/8” 29 Spline.
Small Spline 1-1/4” Spline Pilot Diameter 0.670”
Flywheel Step 2.884”
