42-3005 12-1/4" Dual Stage Clutch Kit Assembly
$840.00
This Is a 12-1/4” Dual Stage Clutch Kit Assembly

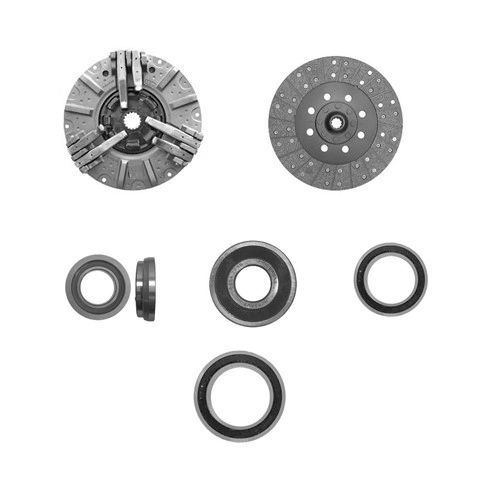

The Kit Comes With
12-1/4” Dual Stage Pressure Plate With 1-3/4” 16 Spline Hub
12-1/4” Woven Clutch With 15/16” 10 Spline Hub
Release Bearing OD 3.550” ID 1.968” Thickness .845”
Release Bearing W/O Collar OD 3.147” ID 1.968” Thickness .620”
Release Bearing OD 4.330” ID 2.758” Thickness 0.785”
Pilot Bearing OD 1.850” ID .669” Thickness 0.550”
