435 John Deere Tractor 10" Single Stage Clutch Kit

$210.00

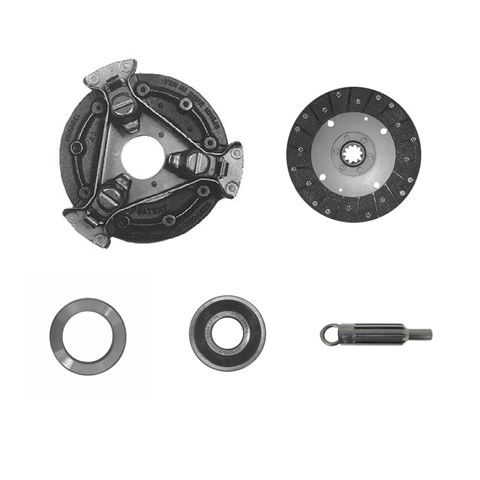

This Is A 10” Single Stage Clutch Kit Assembly

                      The Kit Comes With

10” Single Stage Pressure Plate With 3 Levers And 3 Springe

10” Woven Clutch Disc With 1-3/8” 10 Spline Hub

Release Bearing OD 3.750” ID 2.250” Thickness .750”

Pilot Bearing OD 1.375” ID .590” Thickness .430”

Pilot Bearing OD 1.5748” ID .6693” Thickness .4724”

Alignment Tool 10 Spline 1-3/8” Pilot Diameter 0.670”
