495 Case IH Tractor 12" Single Stage Clutch Kit Assembly
$405.00
This Is a New 12” Single Stage Clutch Kit Assembly

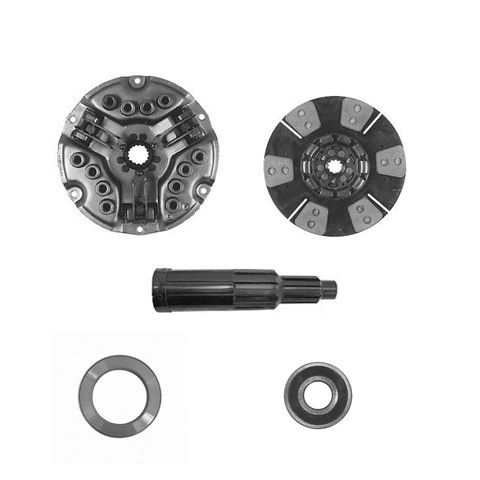

The Kit Comes With
12” Pressure Plate With 3 Levers 12 Spring With 1-5/8” 10 Spline Hub
12” 6 Pad Clutch Disc With 1-1/8” 10 Spline Hub
Release Bearing OD 3.850” ID 2.375” Thickness .810”
Pilot Bearing OD 1.850” ID .787” Thickness .551”
Alignment Tool Large Spline 1-5/8”10 Tooth
Small Spline 1-1/8” 10 Tooth Pilot Diameter 0.750”
Flywheel Step 1.460”
