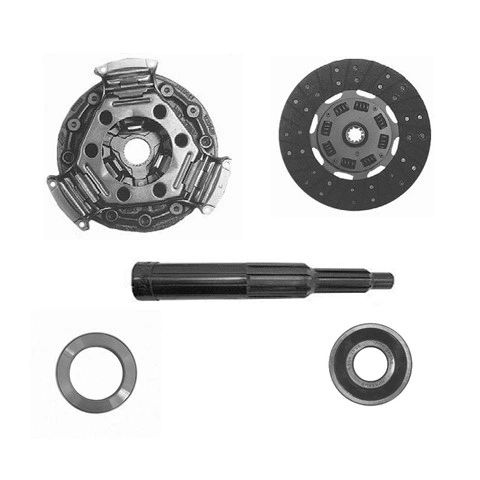

500 Series Ford Tractor 11'' Single Stage Clutch Kit With IPTO

This Is a New Single Stage Clutch Kit Assembly W/IPTO

11’’ Single Stage Pressure Plate 1-7/8’’ 29 Spline Hub

11’’ Woven Spring Disc with 1’’ 10 Spline Hub

With Release Bearing ID 2.500’’ OD 4.154’’ Thickness .865’’

Pilot Bearing ID .6693’’ OD 1.5748’’ Thickness .4724’’

 Alignment Tool Large Spine 1-7/8’’ Small Spline 1’’ X 10

Pilot Diameter 0.670’’
