5000 Ford Tractor with 13" Single Stage Diaphragm Clutch Kit with Dual Power

This Is a New 13” Single Stage Diaphragm Clutch Kit Assembly

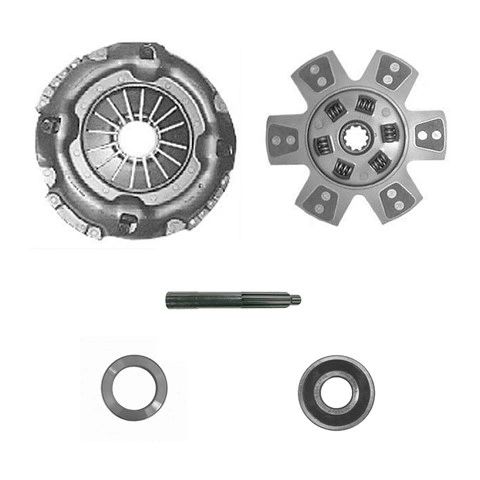

            The Kit Comes With

13” Diaphragm Pressure Plate

13” Clutch Disc With 1-3/4” 10 Spline Spring Hub With 6 Pads

Release Bearing OD 4.070” ID 2.499” Thickness .870”

Pilot Bearing OD 2.677” ID 1.440” Thickness .590”

Alignment Tool Large Spline 1-3/4” 10 Spline Pilot Diameter 1.400”
