560 IMT Tractor 12" Dual Stage Clutch Kit Assembly
$370.00

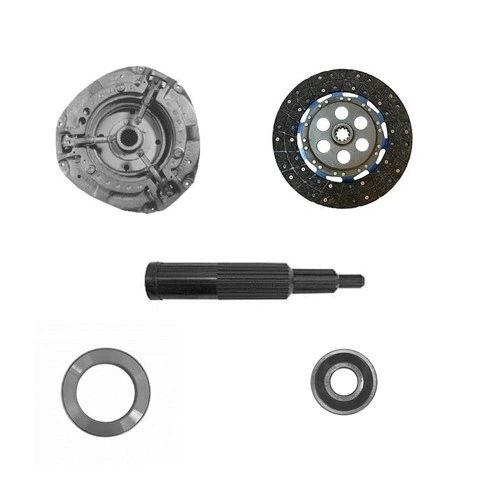

This Is A New 12” Dual Stage Clutch Kit Assembly
The Kit Come With
12” Dual Stage Pressure Plate With 3 Levers 12 Springs With 1-3/4” 10 Spline Hub
12 Woven Clutch Disc With 1-1/8” 10 Spline Hub
Release Bearing OD 4.154” ID 2.500” Thickness .865”
Pilot Bearing OD 1.5748” ID .6693” Thickness 0.4724”
Alignment Tool Large Spline 1-3/4” 10 Spline.
Small Spline 1-1/8” 10 Spline Pilot Diameter 0.678”
Flywheel Step 1-560”-1.565”
