65-90 Hesston Tractor 11" Dual Stage Clutch Kit Assembly

This Is a New 11” Dual Stage Clutch Kit Assembly

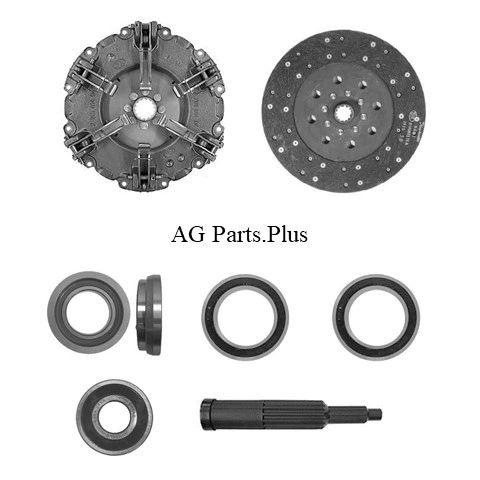

               The Kit Comes With

11” Dual Stage Pressure Plate With 1-9/16” 14 Spline Hub

11” Woven Clutch Disc With 1” 10 Spline Hub

Release Bearing with Collar OD 3.550” ID 1.968” Thickness .845”

Release Bearing Without Collar OD 3.147” ID 1.968” Thickness .620”

Release Bearing OD 4.330” ID 2.758” Thickness 0.785”

Pilot Bearing OD 1.850” ID .669” Thickness 0.550”

Alignment Tool Large Spline 1-9/16” 14 Spline

Small Spline 1” 10 Spline Pilot Diameter 0.669”

Flywheel Step .079”
