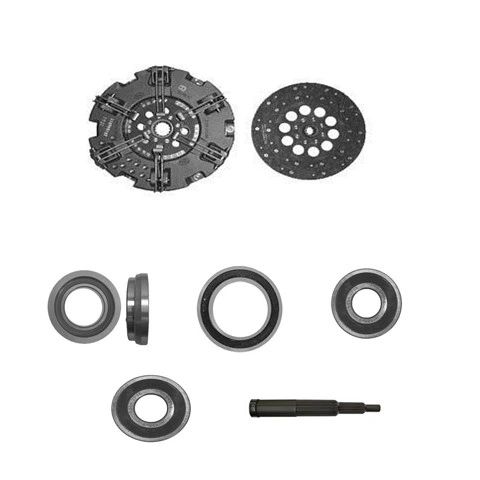

7530 Ford Tractor 12-1/4'' Dual Stage Clutch Kit Assembly

This Is a New 12-1/4’’ Dual Stage Clutch Kit Assembly

12-1/4’’ Dual Stage Pressure Plate 6 Lever 1-3/4’’ Hub

 with 16 Spline with 6 Pad Engine Disc

Flywheel Step Specification (.018")

12-1/4’’ 1-1/8’’ 10 Spline Hub Woven Disc

Release Bearing with collar ID 1.968’’ OD 3.550’’ Thickness .845’’

PTO Release Bearing ID 2.952’’ OD 4.525’’ Thickness .785’’

Pilot Bearing ID .669’’ OD 1.850’’ Thickness 0.550’’

Some Models Have Pilot Bearing ID .787’’ OD 2.047’’ Thickness 0.590’’

Pilot Tool Large Spline 1-3/4’’ X 16 Small Spline 1-1/8’’ X 10

Pilot Diameter 0.0670’’
