785 Case IH Tractor 12" Single Stage Clutch Kit Assembly

$330.00

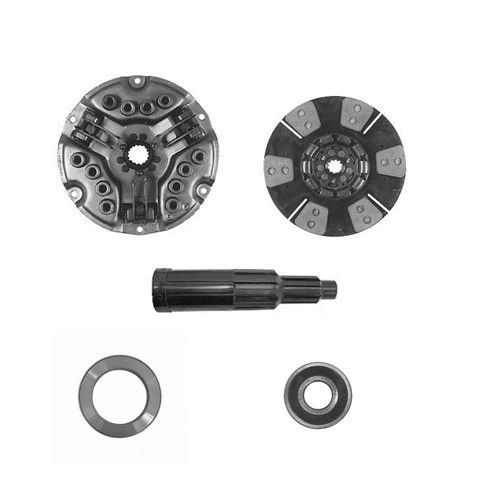

This Is a New 12” Single Stage Clutch Kit Assembly

           The Kit Comes With

12” Pressure Plate With 3 Levers 12 Spring With 1-5/8” 10 Spline Hub

12” 6 Pad Clutch Disc With 1-1/8” 10 Spline Hub

Release Bearing OD 3.850” ID 2.375” Thickness .810”

Pilot Bearing OD 1.850” ID .787” Thickness .551”

Alignment Tool Large Spline 1-5/8”10 Tooth

Small Spline 1-1/8” 10 Tooth Pilot Diameter 0.750”

Flywheel Step 1.460”
