8600 Ford Tractor 13" Single Stage Heavy Duty Clutch Kit Assembly
$380.00

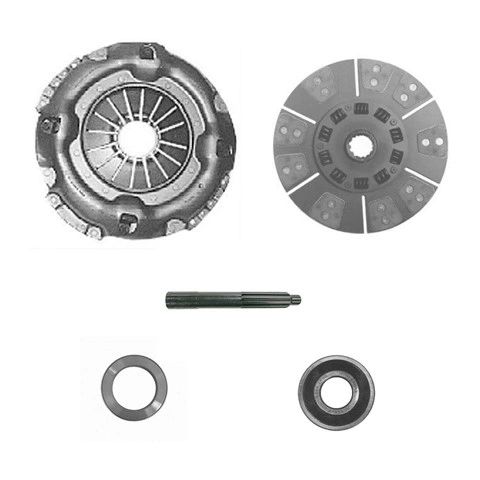

This Is a New 13” Single Stage Clutch Kit Assembly
The Kit Comes With
13” Diaphragm Pressure Plate
13” Clutch Disc With 1-3/4” 10 Spline Spring Hub With 9 Pads
Release Bearing OD 4.070” ID 2.499” Thickness .870”
Pilot Bearing OD 2.677” ID 1.440” Thickness .590”
Alignment Tool Large Spline 1-3/4” 10 Spline
Pilot Diameter 1.400”
