D4000 Mitsubishi Tractor 9" Dual Stage Clutch Kit Assembly

This Is a New 9’’ Dual Stage Clutch Kit Assembly

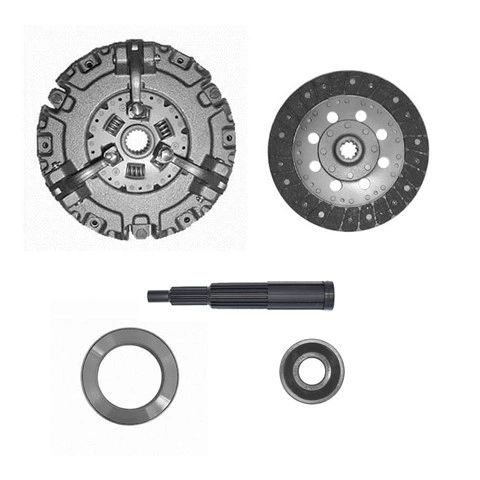

                   The Kit Comes With

9’’ Dual Stage Pressure Plate With 1-3/8” 19 Spline Hub

9” Woven Clutch Disc with 15/16’’ 13 Spline Hub

Release Bearing OD 3.450” ID 2.164” Thickness .765”

Pilot Bearing OD 1.5748” ID .6693” Width .4724”

Alignment Tool Large Spline 1-3/8” 19 Spline

Small Spline 15/16” 13 Spline

Pilot Diameter0.669”

Flywheel Step .020”
