Farmall 60 Tractor 11" Dual Stage Clutch Kit Assembly
$595.00

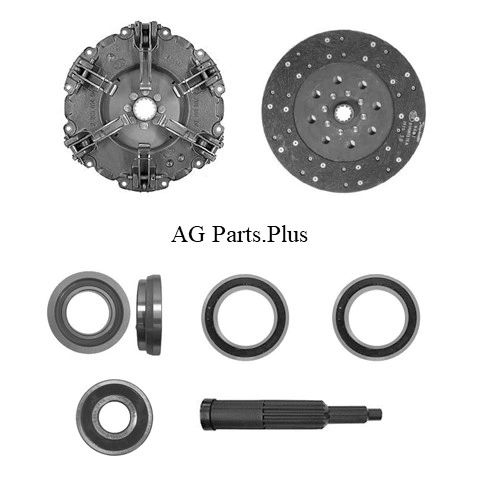

This Is a New 11” Dual Stage Clutch Kit Assembly
The Kit Comes With
11” Dual Stage Pressure Plate With 1-9/16” 14 Spline Hub
11” Woven Clutch Disc With 1” 10 Spline Hub
Release Bearing with Collar OD 3.550” ID 1.968” Thickness .845”
Release Bearing Without Collar OD 3.147” ID 1.968” Thickness .620”
Release Bearing OD 4.330” ID 2.758” Thickness 0.785”
Pilot Bearing OD 1.850” ID .669” Thickness 0.550”
Alignment Tool Large Spline 1-9/16” 14 Spline
Small Spline 1” 10 Spline Pilot Diameter 0.669”
Flywheel Step .079”
