JX70 Case IH Tractor 11" Dual Stage Clutch Kit Assembly HD

This Is a New 11” Dual Stage Clutch Kit Assembly

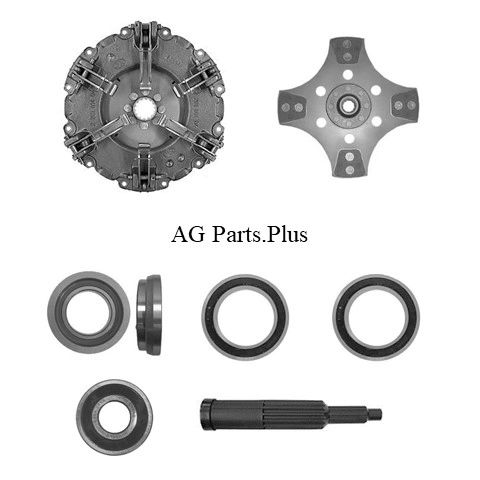

               The Kit Comes With

11” Dual Stage Pressure Plate With 1-9/16” 14 Spline Hub

11” 4 Pad Clutch Disc With 15/16” 10 Spline Hub

Release Bearing with Collar OD 3.550” ID 1.968” Thickness .845”

Release Bearing Without Collar OD 3.147” ID 1.968” Thickness .620”

Release Bearing PTO OD 4.330” ID 2.758” Thickness 0.785”

Pilot Bearing OD 1.850” ID .669” Thickness 0.550”

Alignment Tool Large Spline 1-9/16” 14 Spline

Small Spline 1” 10 Spline Pilot Diameter 0.669”

Flywheel Step .079”
