JX70U Case IH Tractor 12-1/4" Dual Stage Clutch Kit Assembly
$910.00

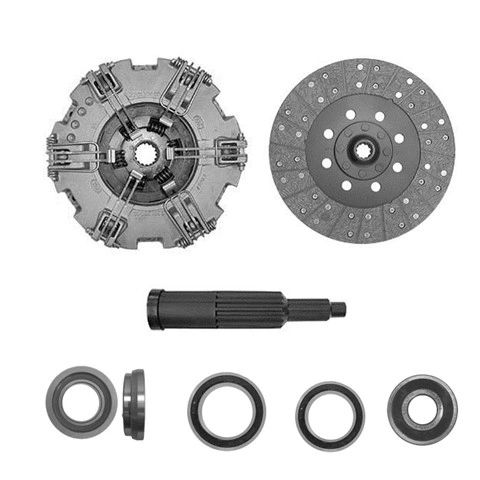

This Is a New 12-1/4’’ Dual Stage Clutch Kit Assembly
The Kit Comes With
12-1/4’’ Dual Stage Pressure Plate with 6 Lever with a 1-3/4’’ 16 Spline Hub
12-1/4’’ Woven Disc With 15/16’’ 10 Spline Hub
Release Bearing with collar OD 3.550’’ ID 1.968’’Thickness .845’’
Release Bearing without collar OD 3.147’’ ID 1.968’’Thickness .620’’
PTO Bearing OD 4.330’’ ID 2.758’’ OD Thickness 0.785’’
Pilot Bearing OD 1.850’’ ID .669’’ OD Thickness 0.550’’
Flywheel Step Specification (.018")
