L2255 Kubota Tractor 8-1/2'' Single Stage Clutch Kit

$160.00

This Is a New 8-1/2’’ Single Stage Clutch Kit Assembly

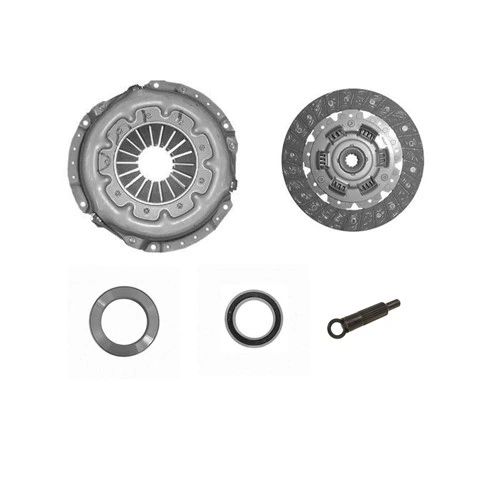

             The Kit Comes With

8-1/2 ‘’ Diaphragm Pressure Plate

8-1/2’’ Woven Clutch Disc With 1’’ 10 Spline Hub

Release Bearings OD 2.900” ID 1.171’’ Thickness .700’’

Pilot Bearing OD 1.250” ID 0.590’’ Thickness 0.350’’

Alignment Tool Large Spline 1” 10 Spline

Flywheel Step .315”
