L3250 Kubota Tractor 9'' Dual Stage Clutch Kit Assembly
$400.00

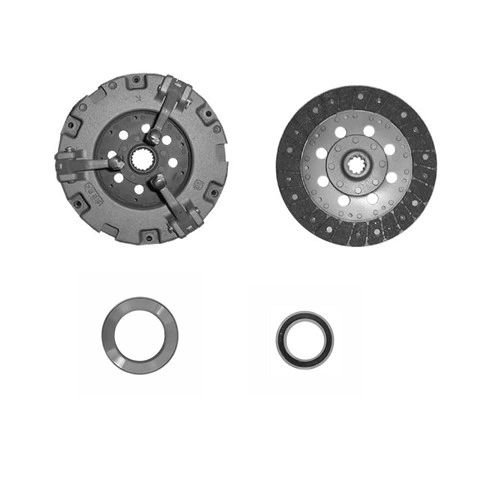

This Is a New 9’’ Dual Stage Clutch Kit Assembly
The Kit Comes With
9” Dual Stage Pressure Plate with a 1-3/8’’ 19 Spline Hub
9” Woven Disc With 15/16’’ 13 Spline Hub
Release Bearing with collar OD 3.450’’ ID 2.164’’Thickness .765’’
Pilot Bearing OD 1.250’’ ID 0.590’’ Thickness 0.350’’
Flywheel Step Specification (.079")
