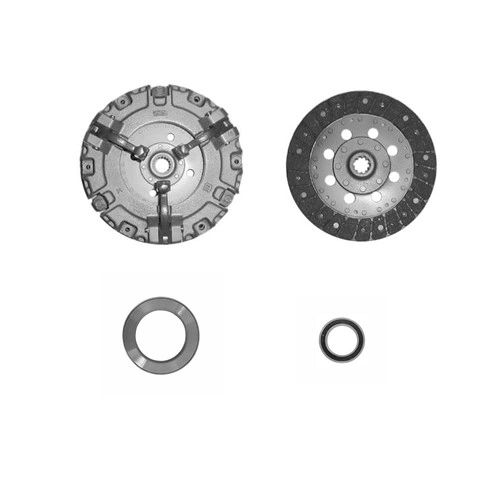

L345 Kubota Tractor With 9" Dual Stage Clutch Kit Assembly

 This Is a New 9” Dual Stage Clutch Kit Assembly

                    The Kit Comes With

9” Dual Stage Pressure Plate With 3 Levers With 1-3/8’’ X 19 Spline Hub

9’’ Woven Clutch Disc with 15/16’’ 13 Spline Hub

Release Bearing 3.710” ID 1.968’’ Thickness .845’’

PTO Release Bearing OD 4.330” ID 2.062’’ Thickness 0.780’’

Pilot Bearing OD 1.250” ID 0.590’’ Thickness 0.350’’

Mounting Surface 11-1/4”

Flywheel Step .028”
