L3650 Kubota Tractor 9'' Dual Stage Clutch Kit Assembly

$400.00

This Is a New 9’’ Dual Stage Clutch Kit Assembly

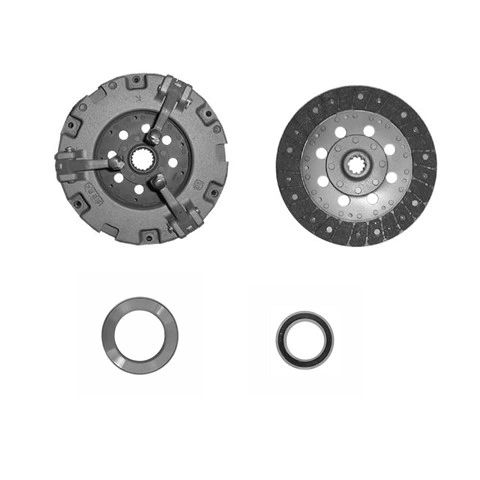

                The Kit Comes With

9” Dual Stage Pressure Plate with a 1-3/8’’ 19 Spline Hub

9” Woven Disc With 15/16’’ 13 Spline Hub

Release Bearing with collar OD 3.450’’ ID 2.164’’Thickness .765’’

Pilot Bearing OD 1.250’’ ID 0.590’’ Thickness 0.350’’

Flywheel Step Specification (.079")
