L39 Kubota Tractor 10-1/4" Single Stage Clutch Kit Assembly

$195.00

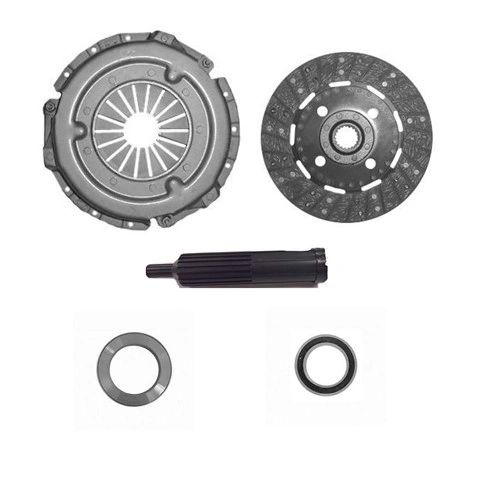

This Is a New 10-1/4’’ Single Stage Clutch Kit Assembly

                   The Kit Comes With

10-1/4” Diaphragm Single Stage Pressure Plate

10-1/4” Woven Clutch Disc With 1-3/8” 19 Spline Hub

Release Bearing OD 3.468” ID 2.166” Thickness .866”

Pilot Bearing OD 1.250” ID 0.590” Thickness 0.350”

Alignment Tool Large Spline 19 Spline Small Spline 0.590”
