L4200 Kubota Tractor 10-1/4" Single Stage Heavy Duty Clutch Kit Assembly

$215.00

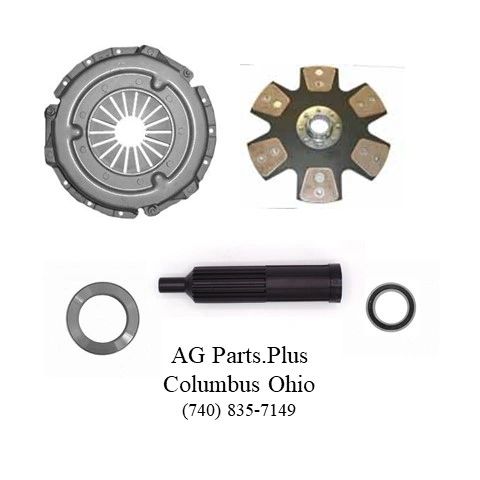

This Is a New 10-1/4” Heavy Duty Single Clutch Kit Assembly

                   The Kit Comes With

10-1/4” Single Stage Pressure Plate

10-1/4” 6 Pad Clutch Disc With 1-3/8” 19 Spline Hub

Release Bearing OD 3.468” ID 2.166” Thickness .866”

Pilot Bearing OD 1.250” ID 0.590” Thickness 0.350”

Alignment Tool Large Spline 1-3/8” 19 Spline

Pilot Diameter .590”
