L4202 Kubota Tractor 10-1/4'' Single Stage Clutch Kit Assembly
$195.00

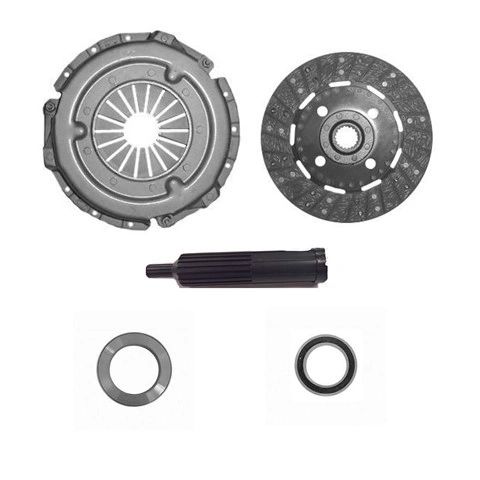

This Is a New 10-1/4’’ Single Stage Clutch Kit Assembly
The Kit Comes With
10-1/4” Diaphragm Single Stage Pressure Plate
10-1/4” Woven Clutch Disc With 1-3/8” 19 Spline Hub
Release Bearing OD 3.468” ID 2.166” Thickness .866”
Pilot Bearing OD 1.250” ID 0.590” Thickness 0.350”
Alignment Tool Large Spline 19 Spline Small Spline 0.590”
