M4700 Kubota Tractor 11'' Single Stage Clutch Kit Assembly
$325.00
This Is a New 11’’ Diaphragm Single Stage Clutch Kit Assembly

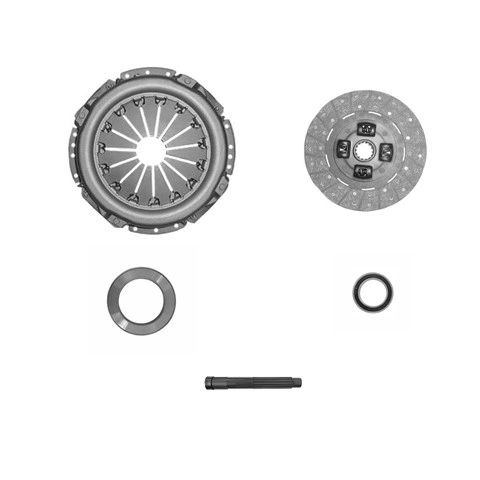

The Kit Comes With
11’’ Diaphragm Pressure Plate
11’’ Woven Clutch Disc with 1-9/16’’ 14 Spline Hub
With Release Bearing ID 2.166’’ OD 3.468’’ Thickness .866’’
Pilot Bearing ID 1.375’’ OD 2.440’’ Thickness 0.548’’
Alignment Tool Large Spline Size 1-9/16’’ 14 Spline Pilot Diameter 1.375’’
