M7040 Kubota Tractor 11" Single Stage Heavy Duty Clutch Kit

This Is a New 11” Single Stage Clutch Kit Assembly

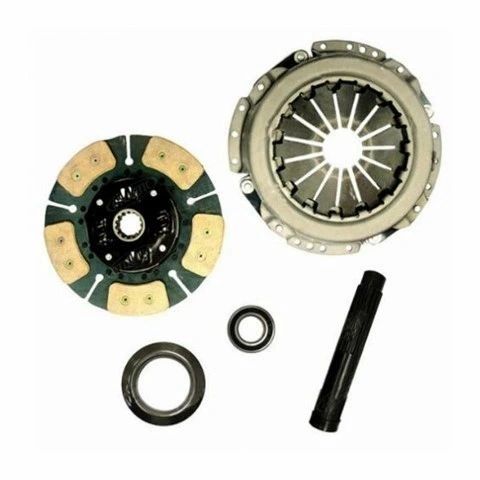

           The Kit Comes With

11” Diaphragm Pressure Plate

11” 5 Pad Clutch Disc With 1-9/16” 14 Spline Spring Hub

Release Bearing OD 3.468” ID 2.166” Thickness .866”

Pilot Bearing OD 2.440” ID 1.375” Thickness 0.548”

Alignment Tool Large Spline 1-9/16” 14 Spline Pilot Diameter 1.378”
